FAAC A951
Vörunúmer: 013447
A951 hurðapumpan hentar vel fyrir skrifstofurými og gerir notandum kleift að opna og loka hurð auðveldlega með hnapp, skynjara eða fjarstýringu. A951 hurðapumpan inniheldur innbygðan örgjörva sem fylgist stöðugt með allri virkni ásamt því að hafa öryggiskerfi gegn klemmuáverkum.
- Hurðapumpan opnar dyr allt að 100 kg þyngd og 1.100 mm breidd —

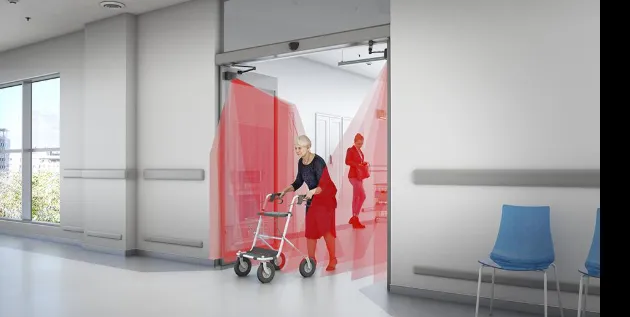

- Hægt er að still hurðapumpu í lágorkustillingu og samþættis EN16005 ratarskynjarar, þ.m.t. nýjan laserskynjarann Faac
- Hægt að tengja tvær einingar saman í Master/Slave stillingu fyrir tvær hurðar
- Hurðapumpan er framleidd í samræmi við evrópska öryggisstaðalinn EN16005
- A951 hurðapumpan er einungis 62mm á hæð
- Auðvelt að tengja varaafl við hurðapumpu
Tæknilegar upplýsingar
| Electrical specifications | |
| Mains supply voltage | 220–240 V~ / 50–60 Hz |
| Maximum power | 100 W |
| Standby power | 5 W |
| Electric motor | 24 Vdc with encoder |
| Max. accessories load | 1 A at 24 V |
| Electric lock power supply (NO/NC) | 24 V / 500 mA max. |
| Mechanical specifications | |
| Drive type | Electromechanical with magnetic encoder |
| Max. torque at output shaft | 25 Nm |
| Usage frequency | 100% (continuous duty) |
| Leaf width range | 700 – 1,100 mm |
| Max. leaf weight (articulated arm) | 100 kg |
| Max. leaf weight (sliding arm) | 100 kg |
| Max. door opening angle | 100° – 125° |
| Dimensions and weight | |
| Dimensions (W x H x D) | 575 x 60 x 70 mm |
| Unit weight | 7 kg |
| Cover | Anodised extruded aluminium |
| Settings and functions | |
| Opening speed adjustment | 4 – 10 seconds (adjustable) |
| Closing speed adjustment | 4 – 10 seconds (adjustable) |
| Partial opening | Standard (adjustable) |
| Pause time | 0 – 30 seconds |
| Night pause time | 0 – 90 seconds |
| Encoder | Standard |
| Safety sensor monitoring (EN 16005) | Standard (can be disabled) |
| Low Energy movement (EN 16005) | Standard (can be disabled) |
| Emergency operation (no mains) | Manual push/pull opening |
| Push & Go function | Standard – light touch opens the door |
| Integrated function selector | AUTOMATIC – MANUAL/NIGHT – OPEN |
| INTRUSION function | Door resists manual opening attempts |
| Double-leaf doors | Master/slave configuration available |
| Safety features | |
| Microprocessor control | Built-in, with self-diagnosis and continuous monitoring of all door functions |
| Anti-crushing protection | Active in both opening and closing |
| Speed and force | Programmed automatically according to door dimensions |
| Soft closing / lock kick | Adjustable closing speed, also during power failure |
| Environment and standards | |
| Operating ambient temperature | -20 °C to +55 °C |
| Degree of protection | IP 23 (internal use only) |
| Compliance standards | EN 16005, EN 13849, EN 61000-6-2, EN 61000-6-3 |
| Machinery Directive | 2006/42/EC |
| Installation | |
| Mounting | On lintel or directly on door structure |
| Door direction | Suitable for inward- and outward-opening doors |
| Reversible installation | Same unit suits both right- and left-hung doors |
| Cover height | Only 60 mm – discreet, low-profile design |
| Fixing | Supplied with fixing plate; low weight for easy installation |
| Accessories (optional) | |
| Arm type | Articulated arm or sliding arm |
| Battery back-up | Optional, fitted under extended cover |
| Cover finish | Available painted in any RAL colour (optional) |
| Activation devices | Push buttons, motion sensors, radars, laser scanners |
| Wireless control | Compatible with FAAC radio transmitters and remotes |
Aukahlutir
Rofar, skynjarar, armar og annar aukabúnaður sem á við FAAC A951. Sendu fyrirspurn um hvern hlut fyrir sig.
